用 途:
* 以其优越的性能,特别适用于地震、防洪防汛、抢险救灾等紧急情况;国道、高速公路的交通管制、事故处理等各种应急现场;铁路施工及抢修;机场、码头、体育场馆、赛车场等大型公共场所紧急照明光源。报道新闻、影视制作现场的快速光源;电力、水利、天然气、电信、公路等各种紧急抢修现场;消防、警察、部队等特殊用途。
产品特点:

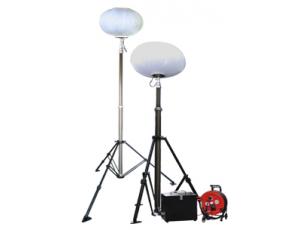

※ :慢射球状灯体,高效照明,近似于自然光。月球灯灯体由坚定的铅材料和不锈刚组成,工作高度4.5米(或6米可选),电源电压220V/50HZ,功率1000W,灯头光通量90000LM。
※ ::防眩目灯光360°大范围照明,无阴影、不刺眼,减轻施工人员疲劳感、确保安全。
※:绿色环保,无光线污染,美化施工环境.
※:照明球体上可做广告,提高企业知业度。
※:新式减速绞盘,使升降更加轻便顺畅。
Genshent Technical Data | Mo-1100Q | Mo-1000Q |
Dimension (L*W*H)mm | 550*350*800 | 200*200*1600 |
Mast Height (Fully Extenled) | 4m | 3.5m |
Weight ( Net ) | 98kg | 57kg |
Rated Voltage | 220V(Single Phase ) | 220V(Input Power) |
Rated Power | 2.2KVA | / |
Power Outlet Sockets | 2PCS*10A | / |
Input Voltage | 220V(Single Phase) | / |
Fuel Tank Capacity | 15Liters | / |
Fuel Tank Operating Hours | 13 hours | / |
Fuel Consumption (g/kw.h) | NA | / |
Acoustic Pressure | 62dB (A)7m | / |
Load Capacity For 40"HC(Units ) | 60 | / |
Engine | City power supply | |
Engine Model | EC2500CX | / |
Speed (Rpm) | 3000 | / |
Prime Power ( Kw ) | 2.2 | / |
Cooling System | Air -cooled | / |
Oil Capability | 1.1L | / |
Emission Level | NA | / |
Alternator | Italy Mecc alte | / |
Alternator Model | G*160H1 | / |
Frequency ( Hz ) | 50 | / |
Continued Power (Kw) | 2.2 | / |
Alternator | Brushless | / |
Excitation Mode | Capacitor exciter | / |
Rating Voltage (V ) | / | |
Alternator Insulation | / | |
Protection Grade | / | |
Mast | Pneumatic Operation Mast | |
Mast Height | 4m | |
Section No.(Extended) | 3 | |
Mast Rotation | / | |
Mast Extension Time | / | |
Mast Descend Time | / | |
Lighting | LAMP | |
Type of lights | Metal Halide Lamp | |
Number Power of Lights | 1000W | |
Mast Lighting & Extension | Pneumatic operation | |
Light angle turning | / | |
Luminous Efficiency | 80Lumens /Watt | |
Lamps Rotation | / | |
Protection Glass | IP65 | |
Luminous Flux | 1*99000LM | |
Color Temperature | 4000K | |
Trailer | Trailer | |
Manufacturer | SUOEN | |
Braking System | Foot brake | |
Hitch | / | |
Tire Rim Size | Φ156mm | |
Speed (Rpm) | / |
