产品参数:
发电机组
1、 额定电压：220V
2、 灯头功率：4*100W LED
3、 灯头光通量：10000LM
4、 平均使用寿命：2000H
5、 连续工作时间：市电供应：长时间
油箱注满油：13h
6、 高度范围：4-7m
7、 升降方式：手动
8、 额定输出电压：220V
9、 输出功率范围：2-2.2KW
10、 油箱额定容量：25L
11、 外形尺寸：长*宽*高：975mm*550mm*560mm
12、 重量：灯盘8KG
气缸/发电机组：12/74kg

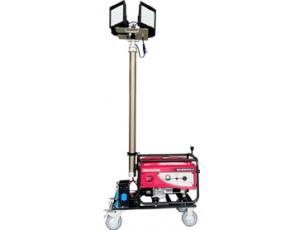

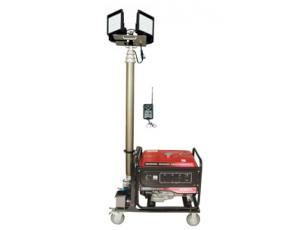

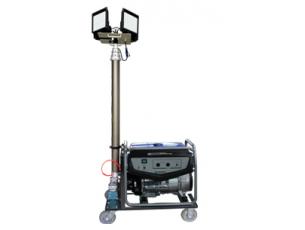

| Model | Small Mobile Light Tower | |
| Genshent Technical Data | Mo-4500 | Mo-4500L |
| Dimension (L*W*H)mm | 550*350*800 | |
| Mast Height (Fully Extenled) | 4M | |
| Weight ( Net ) | 98 | |
| Rated Voltage | 220V(Single Phase ) | |
| Rated Power | 2.2KVA | |
| Power Outlet Sockets | 2PCS*10A( AC220V 1 Phase) | |
| Input Voltage | 220V(Single Phase ) | |
| Fuel Tank Capacity | 15liters (20US Gallons) | |
| Fuel Tank Operating Hours | 13 hours | |
| Fuel Consumption (g/kw.h) | NA | |
| Acoustic Pressure | 56dB (A) at 7 away | |
| Load Capacity For 40"HC(Units ) | 60 | |
| Engine | Honda (Gasoline ) | |
| Engine Model | ER2500CX | |
| Speed (Rpm) | 3000 | |
| Prime Power ( Kw ) | 2.2 | |
| Cooling System | Air -cooled | |
| Oil Capability | 1.1L | |
| Emission Level | NA | |
| Alternator | Italy Mecc alte | |
| Alternator Model | G*160H1 | |
| Frequency ( Hz ) | 50 | |
| Continued Power (Kw) | 2.2 | |
| Alternator | Brushless Single phase | |
| Excitation Mode | Capacitor exciter | |
| Rating Voltage (V ) | 220V | |
| Alternator Insulation | H1 | |
| Protection Grade | Ip23 | |
| Mast | Pneumatic operation mast | |
| Mast Height | 4m | |
| Section No.(Extended) | 3 | |
| Mast Rotation | / | |
| Mast Extension Time | / | |
| Mast Descend Time | / | |
| Lighting | LAMP | |
| Type of lights | Halogen Lamp | LED |
| Number Power of Lights | 4*500W | 4*100W |
| Mast Lighting & Extension | Pneumatic operation | Pneumatic operation |
| Light angle turning | Manual Operation | Manual Operation |
| Luminous Efficiency | 80Lumens /Watt | 110Lumens /Watt |
| Lamps Rotation | / | / |
| Protection Glass | IP65 | IP65 |
| Luminous Flux | 4*10000LM | 4*11000LM |
| Color Temperature | 6500K | 5000K |
| Trailer | Trailer | Trailer |
| Manufacturer | SUOEN | SUOEN |
| Braking System | Foot brake | Foot brake |
| Hitch | / | / |
| Tire Rim Size | Φ252mm | Φ156mm |
| Speed (Rpm) | / | / |
